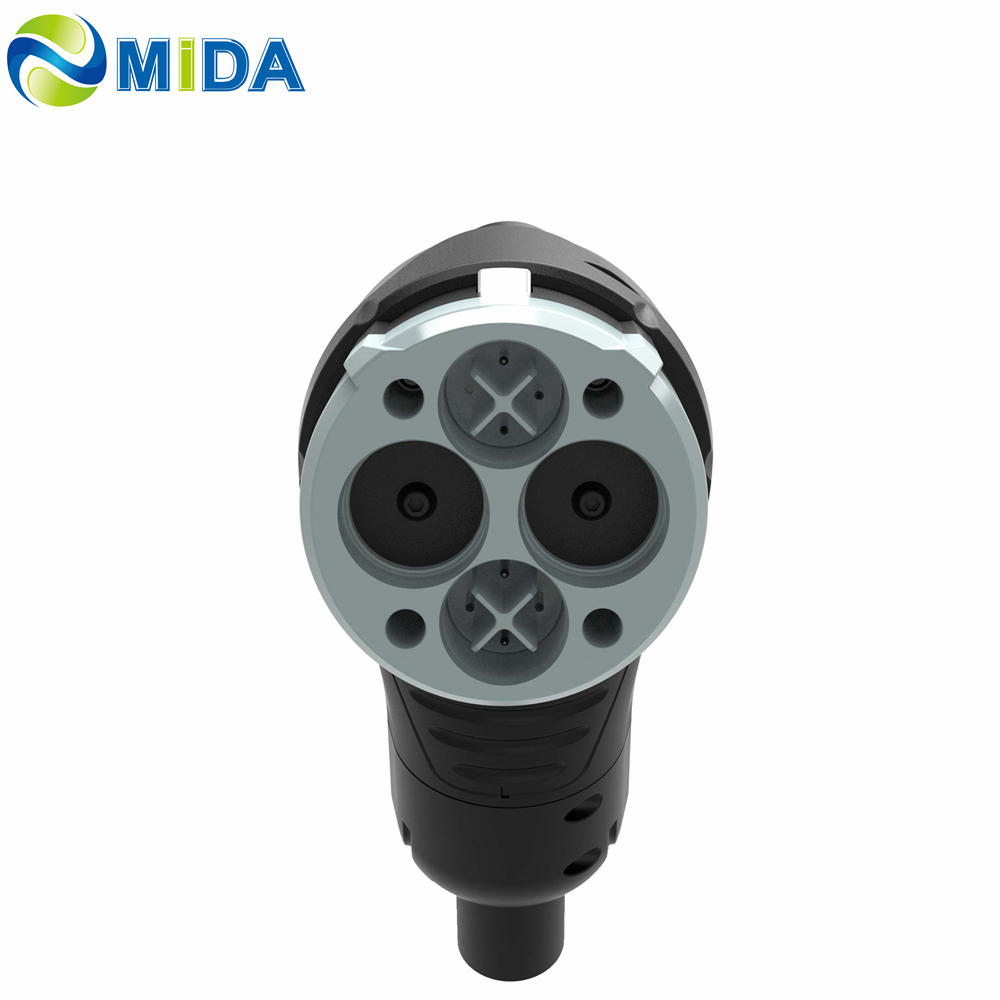

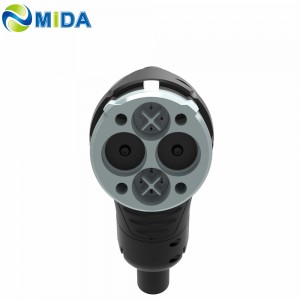

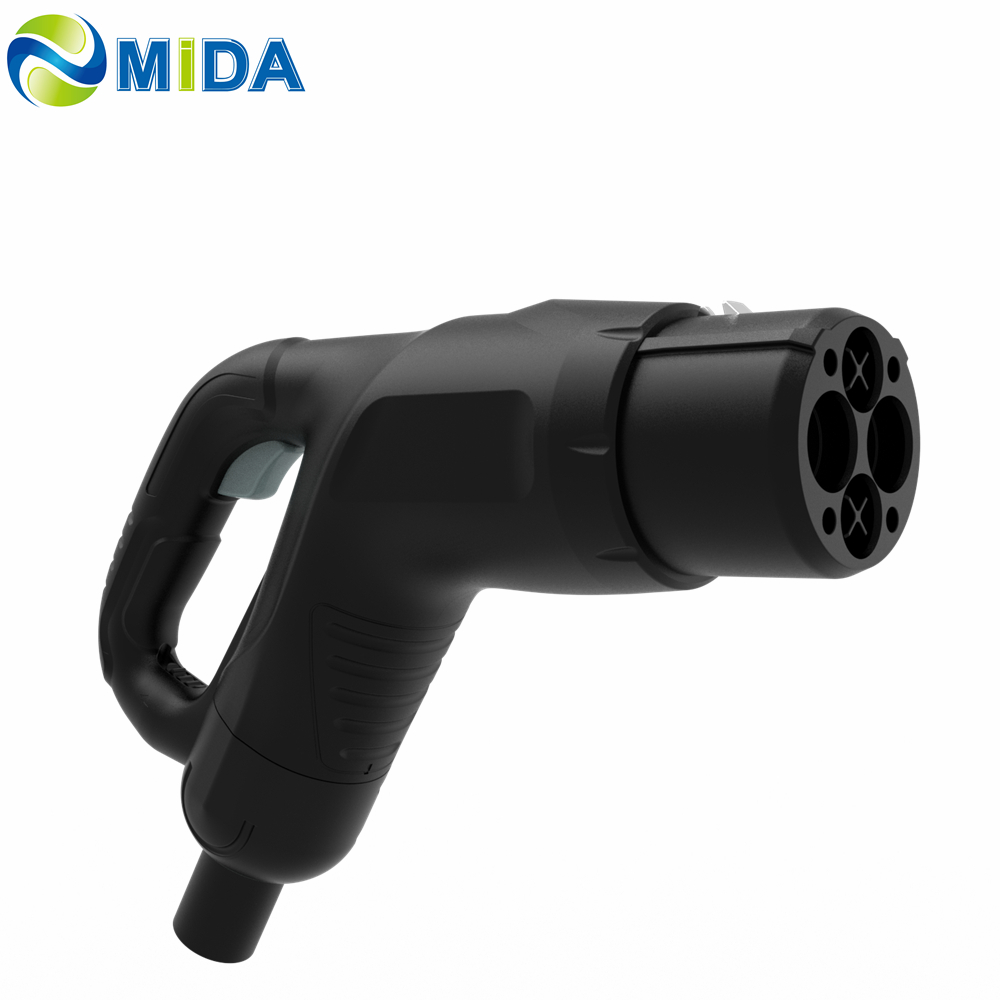

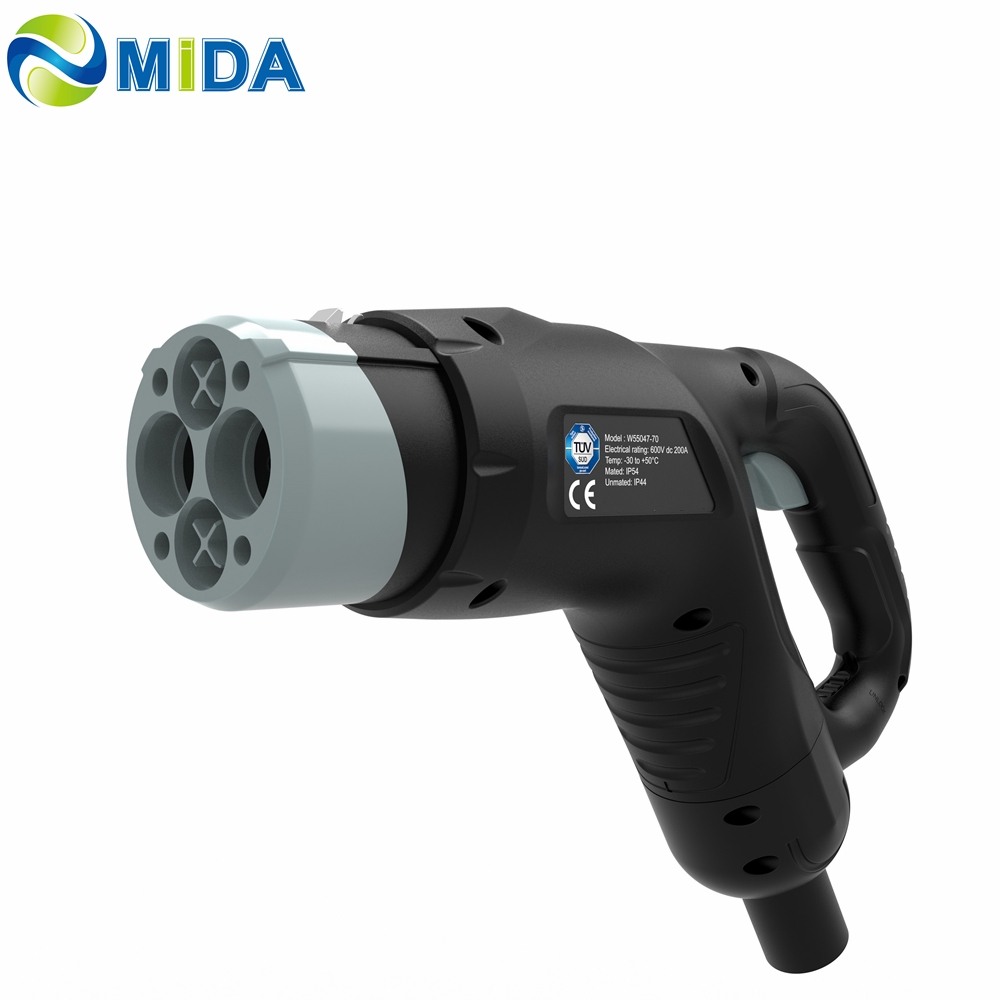

MIDA CHAdeMO EV Charging Plug 200A 250A for DC Fast Charging Station

Short Description:

Rated Current:250A
Rated voltage:750V
Therminal temperature rise:<50K
Protection Degree:IP55
Withstand voltage:2000V
Working temperature:-30°C ~+50°C
Contact impedance:0.5m Max
Certificate:CE Approved, UL

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Model	CHAdeMO Plug
Rated current	DC+/DC-：80A,125A,150A,200A,250A PP/CP：2A
Wire Diameter	80A/16mm2125A/35mm2150A/70mm2200A/80mm2
Rated voltage	DC+/DC-: 750V DC; L1/L2/L3/N: 480V AC; PP/CP: 30V DC
Withstand voltage	3000V AC / 1min. (DC + DC- PE)
Insulation resistance	≥ 100mΩ 750V DC (DC + / DC- / PE)
Electronic locks	12V / 24V optional
Mechanical life	10,000 times
Ambient temperature	-40℃~50℃
Degree of Protection	IP55(When not mated) IP44(After mated)
Main material
Shell	PA
Insulation part	PA
Sealing part	Silicone Rubber
Contact part	Copper alloy
