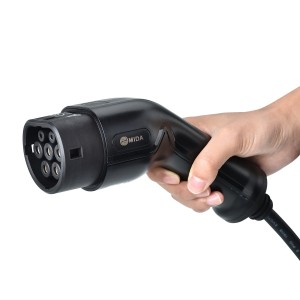

IP 55 waterproof IEC 62169 ev charging cable type 2 electric vehicle charge plug

Short Description:

Model: MIDA-EVEF-16A-SP MIDA-EVEF-16A-TP
MIDA-EVEF-32A-SP MIDA-EVEF-32A-TP
1. Rated Current:16A / 32A Single / Three Phase
2. OperationVoltage:AC 250V/480V
3. Insulation Resistance:>1000MΩ(DC500V)
4 Withstand Voltage:3200V
5.Contact Resistance:0.5mΩ Max


Product Detail

FAQ

Product Tags

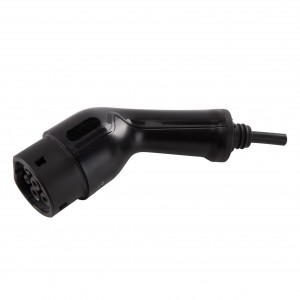

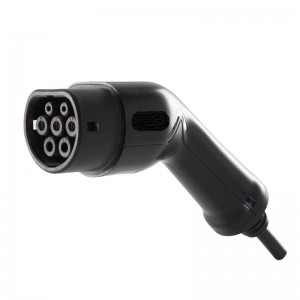

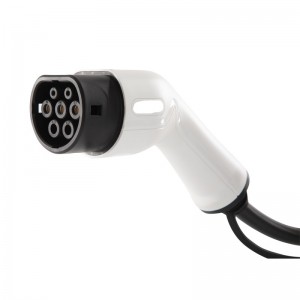

Item Type 2 Female EV Plug
Standard IEC 62196-2
Product Model MIDA-EVEF-16A-SP  MIDA-EVEF-16A-TP
MIDA-EVEF-32A-SP  MIDA-EVEF-32A-TP
Rated Current 16A,32A,63A (Single/Three Phase)
Operation Voltage AC 250/ AC 480V
Insulation Resistance >1000MΩ(DC 500V)
Withstand Voltage 2000V
Contact Resistance 0.5mΩ Max
Terminal Temperature Rise <50K
Operating Temperature -30°C~+50°C
Coupled Insertion Force >45N<80N
Impact Insertion Force >300N
Waterproof Degree IP55
Flame Retardant Grade UL94 V-0
Certification TUV,CE Approved
