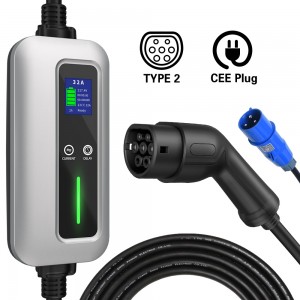

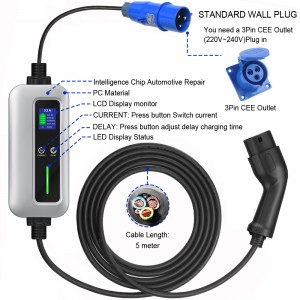

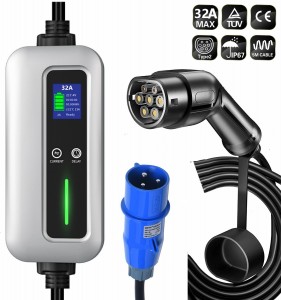

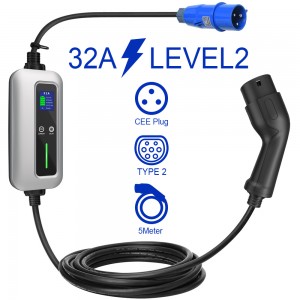

IEC 62196 Type 2 Plug10A 16A 20A 32A with Blue CEE plug Home Portable EV Charger for Electric Car

Short Description:

Rated current: 10A,16A,20A,24A ,32Amp
Operating voltage: 110V~250V AC
Insulation resisitance:>1000MΩ
Therminal temperature rise:<50K
Withstand voltage:2000V
Working temperature: -30°C ~+50°C
Contact impedance: 0.5m Max

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Rated Current		10A / 16A / 20A/ 24A / 32A ( Optional )
Rated Power		Max 7.2KW
Operation Voltage		AC 110V~250 V
Rate Frequency		50Hz/60Hz
Leakage Protection		Type B RCD ( Optional )
Withstand Voltage		2000V
Contact Resistance		0.5mΩ Max
Terminal Temperature Rise		＜50K
Shell Material		ABS and PC Flame Retardant Grade UL94 V-0
Mechanical Life		No-Load Plug In / Pull Out ＞10000 Times
Operating Temperature		-25°C ~ +55°C
Storage Temperature		-40°C ~ +80°C
Protection Degree		IP67
EV Control Box Size		200mm (L) X 93mm (W) X 51.5mm (H)
Weight		2.8KG
OLED Display		Temperature, Charging Time, Actual Current, Actual Voltage, Actual Power, Capacity Charged, Preset Time
Standard		IEC 62752 , IEC 61851
Certification		TUV,CE Approved
Protection		1.Over and under frequency protection 2. Over Current Protection 3.Leakage Current Protection (restart recover） 4. Over Temperature Protection 5.Overload protection (self-checking recover) 6. Ground Protection and Short circuit protection 7.Over voltage and under-voltage protection 8. Lighting Protection
