Actuator Motor Electromagnetic Lock DSIEC-ELB IEC 62196-2 Type 2 Socket

Short Description:

E-lock Specification:
Mechanical life: operating cycle > 500000 times
Current: 3A/ 1.5A
Voltage: 12V/ 24V DC
Power: 36W
Operating Voltage Range: 12V/ 24V DC
Withstand Voltage: 1000V
Working cycle: 5%ED activation < 200ms, continue 3 seconds max
Insulation class: E CLASS

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

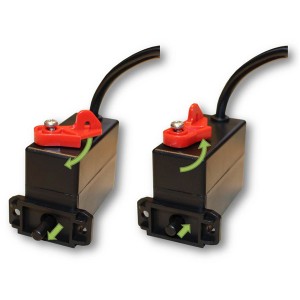

Electromagnetic Lock (DSIEC-ELB)

Features	1. Instantaneous power supply mode,low energy loss
	2. Small size,suitable for small space installation
	3. Power failure or malfunction can be manual release
	4. Non-detachable shell protection,protection grade IP55
Mechanical Properties	1. Mechanical life : operating cycle ＞500000 times
Electrical Performance	1. Rated Current：3A/1.5A
	2. Rate Voltage：12V /24 V DC
	3.Power：36W
	4. Operating voltage range：12V /24 V DC
	5. Withstand Voltage：1000V
	6. Insulation class: E CLASS
	7. Working cycle: 5%ED activation＜200ms,continue 3 seconds max
Other	1. Case Material: Thermoplastic,flame retardant grade UL94 HB
	1. Operating temperature:-30°C~+50°C
Model selection and the standard wiring
Model		Rated Current	Cable Specigication
DSIEC-ELB		12V 3A	3 X 0.25mm²
		24V 1.5A	3 X 0.25mm²
