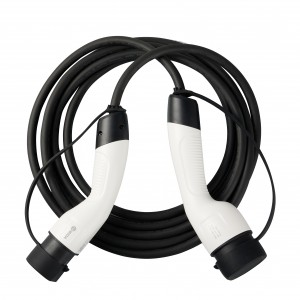

China Factory EV Charger 32A 230V 7.2kw Type 2 to Type 2 EV Charging Cable

Short Description:

Electrical Performance
Model: MIDA-EVFM-16A-TP MIDA-EVFM-32A-TP
Rated Current: 16A ,32Amp (Adjustable)
Operating Voltage: 250V~480V AC
Insulation Resisitance:>1000MΩ
Therminal Temperature rise:<50K
Withstand Voltage:2000V


Product Detail

FAQ

Product Tags

China Factory EV Charger 32A 230V 7.2kw Type 2 to Type 2 EV Charging Cable

Materials

Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber

TPU insulation,TPU Sheath EV Charging Cable for EV Plug & EV Socket ,32A 240V 62196

Product Model MIDA-EVFM-16A-SP
MIDA-EVFM-32A-SP
MIDA-EVFM-16A-TP
MIDA-EVFM-32A-TP
Rated Current 16A / 32A  Single Phase 16A / 32A  Three Phase
Operation Voltage AC 250V AC 480V
Insulation Resistance >1000MΩ  ( DC 500V )
Withstand Voltage 2000V
Pin Material Copper Alloy, Silver Plating
Shell Material Thermoplastic,Flame Retardant Grade UL94 V-0
Mechanical Life No-Load Plug In  / Pull Out >10000 Times
Contact Resistance 0.5mΩ Max
Temperature Rise <50K
Operating Temperature -30°C~+50°C
Impact Insertion Force >300N
Waterproof Degree IP55
Cable Protection Reliability of materials,antiflaming,pressure-resistant,
abrasion resistance,impact resistance and high oil
Certification TUV,CE Approved
Model Current Phase Cable Specification Color Cable Length
MIDA-EVFM-16A-SP 16Amp 1Phase 3 X 2.5mm² + 1 X 0.5mm² Black
Orange
Green
(5M ,10M)
The length of
cable can be customized
MIDA-EVFM-32A-SP 32Amp 3 X 6.0mm²+1 X 0.5mm²
MIDA-EVFM-16A-TP 16Amp 3Phase 5 X 2.5mm² + 1 X 0.5mm²
MIDA-EVFM-32A-TP 32Amp 5 X 6.0mm²+1 X 0.5mm²
