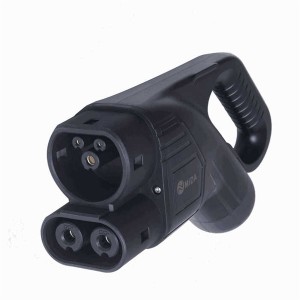

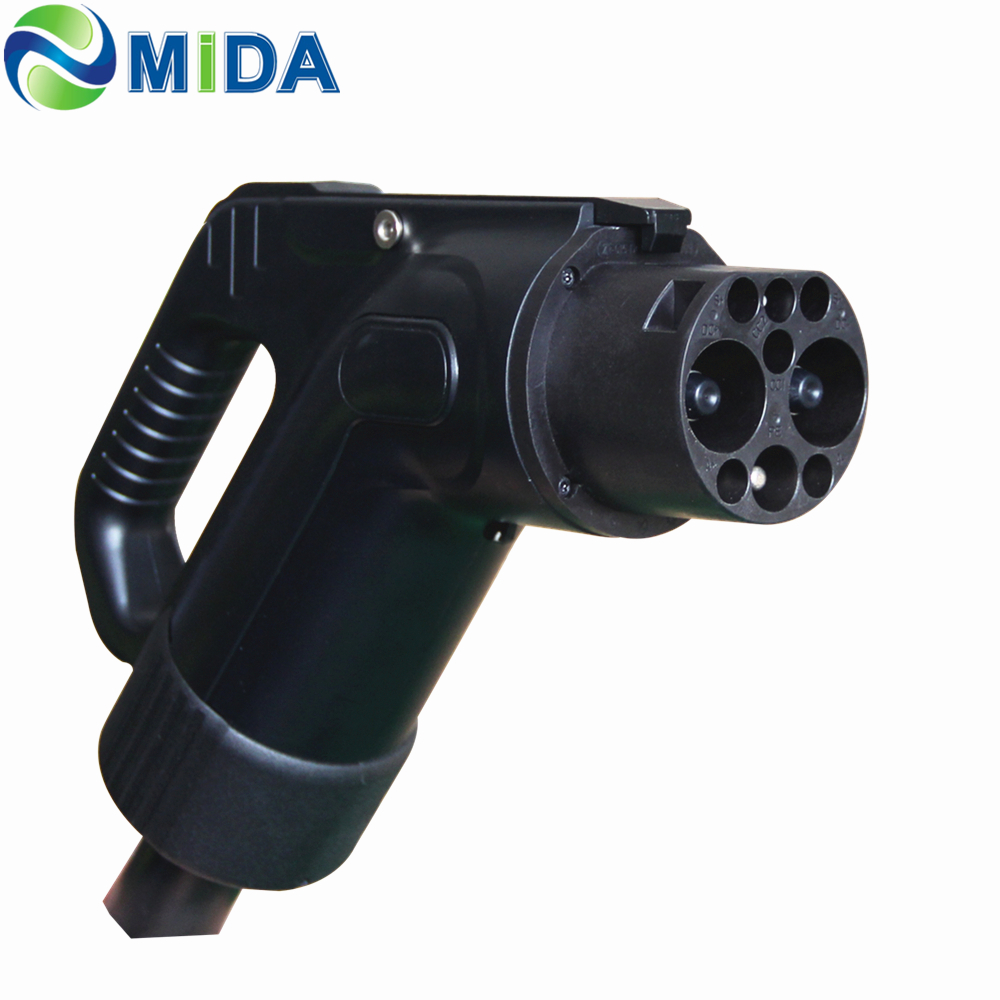

China 250A GBT GUN EV Plug DC Fast Charging Connector for 40KW Quick DC Charger Station

China 250A GBT GUN EV Plug DC Fast Charging Connector for 40KW Quick DC Charger Station Featured Image
Loading...
  • China 250A GBT GUN EV Plug DC Fast Charging Connector for 40KW Quick DC Charger Station
  • China 250A GBT GUN EV Plug DC Fast Charging Connector for 40KW Quick DC Charger Station

Short Description:

MIDA-GBT-EV80P MIDA-GBT-EV150P
MIDA-GBT-EV200P MIDA-GBT-EV250P
Rated current : 80A 125A 200A 250A
Operating voltage : 750V/1000V DC
Insulation resistance : >2000MΩ (DC1000V)
Terminal temperature rise :<50K
Withstand voltage :3200V
Vibration resistance :Meet JDQ 53.3 requirements
Contact impedance:0.5MΩ Max


Product Detail

FAQ

Product Tags

Detailed dimensions

Features
1. Meet GB/T 20234.2-2015 regulations and requirements
2. Nice appearance,hand-held ergonomic design,easy plug
3. Safety pins insulated head design to prevent accidental diirecrt contact with staff
4. Excellent protection performance,protection grade IP55(working condition)
Mechanical properties
1. Mechanical life : no-load plug in/pull out>10000 times
2. Impat of external force:  can afford 1m drop and 2t vehicle run over pressure
Electrical Performance
1. Rated current:80A/125A/200A/250A
2. Operation voltage: 750V
3. Insulation resistance:>2000MΩ(DC500V)
4. Terminal temperature rise:<50K
5. Withstand Voltage :5000V
6. Contact Resistance: 0.5mΩ Max
Applied Materials
1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
2. Pin:Copper alloy,silver + thermoplastic on the top
Environmental performance
1. Operating temperature:-30℃~+50℃

Model selection and the standard wiring

Model Rated current Cable specification
NV3-DSD-EV80P 80A 3 X 16mm² + 2 X 4mm² + 2P(4 X 0.75mm²)+ 2P(2 X 0.75mm²)
NV3-DSD-EV125P 125A 2 X 35mm² + 1 X 16mm²  + 2 X 4mm² + 2P(4 X 0.75mm²)+ 2P(2 X 0.75mm²)
NV3-DSD-EV200P 200A 2 X 70mm² + 1 X 25mm²  + 2 X 4mm² + 2P(4 X 0.75mm²)+ 2P(2 X 0.75mm²)
NV3-DSD-EV250P 250A 2 X 80mm² + 1 X 25mm²  + 2 X 4mm² + 2P(4 X 0.75mm²)+ 2P(2 X 0.75mm²)
