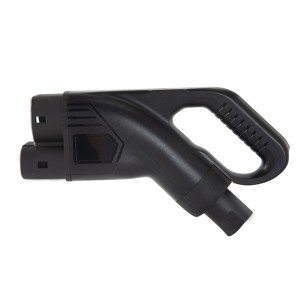

CCS Combo 2 Connector 200A 150A DC Charging Plug 1000V DC

Short Description:

Model: MIDA-CSS2-EV80P ,MIDA-CSS2-EV125P
MIDA-CSS2-EV150P , MIDA-CSS2-EV200P
1. Rated Current：80A /125A/150A/200A
2. OperationVoltage：DC 1000V
3. Insulation Resistance：＞1000MΩ（DC500V）
4. DC Max Charging Power: 127.5KW
5.AC Max Charging Power: 41.5KW
6. Withstand Voltage：3200V

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Features	1. Meet 62196-3 IEC 2011 SHEET 3-Im standard
	2. Concise appearance, support back installation
	3. Back Protection class IP55
	4.Max charging power:127.5kW
	5. AC Max charging power:41.5kW
Mechanical Properties	1. Mechanical life : no-load plug in/pull out＞10000 times
	2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure
Electrical Performance	1. DC input: 80A ,125A ,150A ,200A 1000V DC MAX
	2. AC input: 16A 32A 63A 240/415V AC MAX
	3. Insulation resistance：＞2000MΩ（DC1000V）
	4. Terminal temperature rise：＜50K
	5. Withstand Voltage：3200V
	6. Contact resistance: 0.5mΩ Max
Applied Materials	1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
	2. Pin：Copper alloy,silver +thermoplastic on the top
Environmental Performance	1. Operating temperature: -30°C~+50°C
Model selection and the standard wiring
Model		Rated Current	Cable Specigication	Cable Color
MIDA-CSS2-EV150P		150A	2 X 50mm²+1 X 25mm² +6 X 0.75mm²	Orange or Black
