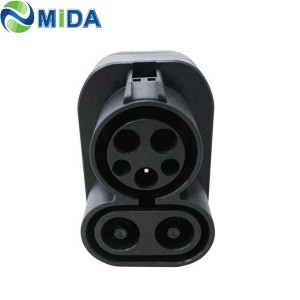

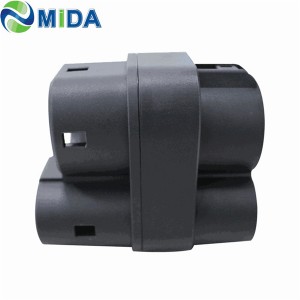

CCS Combo 1 Type 1 to Type 2 Adapter Connector Fast Charge Adaptor Socket

Short Description:

Item: CCS 1 to CCS 2 EV Adapter
CCS Combo 1 Plug to Converter to CCS Combo 2 Plug
If your electric vehicle has the European standard CCS Combo 1 plug for DC fast charging, and you wish to use CCS 1 Plug chargers CCS 2 Socket , this adapter is for you! This durable adapter lets your CCS Combo 1 vehicle charge at full speed at all CCS Combo 2 quick charger stations. Rated for up to 150 amps and 600 volts DC.

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

CCS Combo 1 to CCS Combo 2 DC Fast Charge EV Adapter Connector

This CCS Combo 1 to CCS Combo 2 adapter is specifically for European and American markets’ Drivers.
When there are CCS Combo 2 EV Chargers around them and their EVs are from American Standard (SAE J1772 CCS Combo 1)

they need to use CCS Combo 1 to converter to CCS combo 2 to charge their EVs.
So the CCS1 to CCS2 Adapter will help EV drivers to use CCS Combo 1 EV charger to charge CCS Combo 2 EV Socket
Item: CCS 1 to CCS 2 EV Adapter
CCS Combo 1 Plug to Converter to CCS Combo 2 Plug

Charging plug	COMBO1 :Meet 62196-3 IEC2014 SHEET 3-lllB standard COMBO 2:meet 62196-3 IEC 2011 SHEET 3-lm standard
Features	Combo 1:Housing massive structure promote protection performance Combo 2:Safety pins insulated head design to prevent accidental direct contact with staff
Mechanical life	No-load plug in/pull out>10000 times
Impat of external force	can afford 1m drop and 2t vehicle run over pressure
Operating temperature	-30℃~+50℃
Case Material	Thermoplastic,flame retardant grade UL94V-O
Contact bush	Copper alloy.silver plating
Product entire insertion and extration force	<100N
IP Protection	IP65
Rated current	150 A
Insulation resistance	>2000MΩ（DC1000V）
Terminal temperature rise	<50K
Withstand Voltage	3200V
Operation voltage	1000VDC
