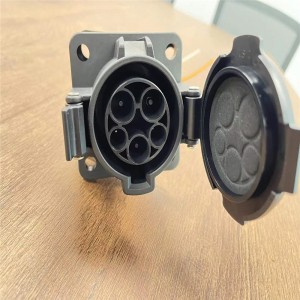

80Amp SAE J1772 Socket Type 1 EV Charging Inlets EVSE Socket For Electric Car Charger
| Features | 1. Meet SAE J1772-2010 standard | ||||||||
| 22. Nice appearance，left flip protection,support front installation | |||||||||
| 3. Reliability of materials, antiflaming,pressure -resistant,abrasion resistance | |||||||||
| 4. Excellent protection performance,protection grade IP44(working condition) | |||||||||
| Mechanical properties | 1. Mechanical life : no-load plug in/pull out＞10000 times | ||||||||
| 2. Coupled insertion force:>45N<80N | |||||||||
| Electrical Performance | 1. Rated current：80A | ||||||||
| 2. Operation voltage： 240V | |||||||||
| 3. Insulation resistance：＞1000MΩ（DC500V） | |||||||||
| 4. Terminal temperature rise：＜50K | |||||||||
| 5. Withstand Voltage：2000V | |||||||||
| 6. Contact Resistance： 0.5mΩ Max | |||||||||
| Applied Materials | 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0 | ||||||||
| 2. Pin：Copper alloy,silver plating | |||||||||
| Environmental performance | 1. Operating temperature: -30°C~+50°C | ||||||||
| Model selection and the standard wiring | |||||||||
| 80Amp J1772 Inlets Socket | 2x5AWG+1x6AWG+2x18AWG | 240V | VCSU2A080D0 | ||||||
Write your message here and send it to us
Products categories
-

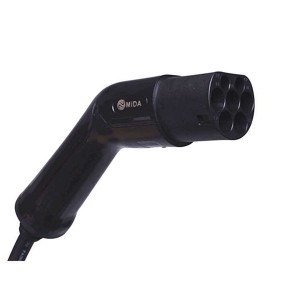

sae j1772 16A/32A AC type 1 charging plug femal...
-
