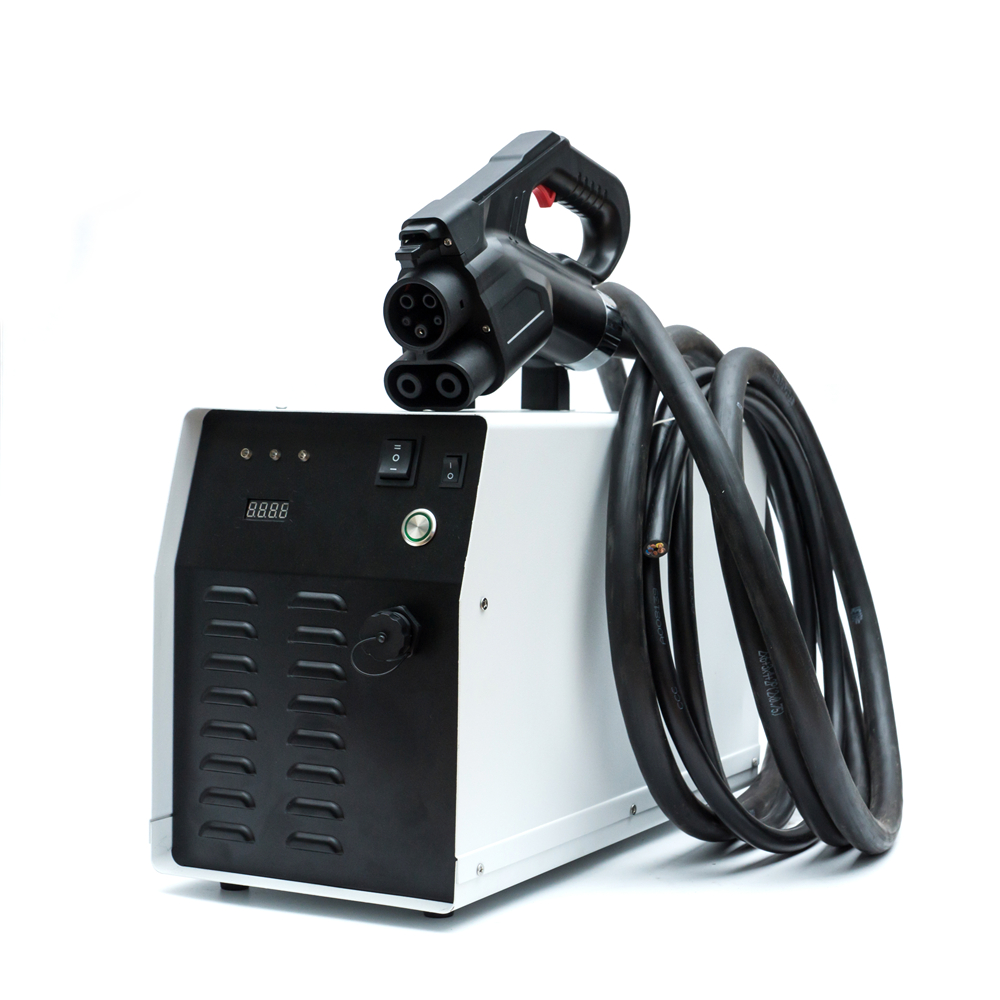

7KW CCS Combo 1 Portable Fast DC Charger for Electric car

Short Description:

Country of origin : China
Brand : Electway
Model : CHR-10
Certification : CE,UL
Warranty : 1 year
Packing : Wooden
Delivery time : 30 days
Payment terms : T/T
Loading port : Guangzhou
MOQ : 1 PCS
7KW Portable Fast DC Charger for Electric car


Product Detail

FAQ

Product Tags

7KW CCS Combo 1  fast DC charger

Our CHR-7 series Mini Fast DC charger for electric car is the ideal final solution for frequently use your EV in one day.It can make your EV
run more than 500 miles range by charging sereral times, and each times just need within 1 hour.This fast charger available in most industial
facilities by AC power sockets(380V,3 phase).This device can let your EV from 30% SOC to 80% SOC in 30 min.This portable with wheels
cabinet can be on board and no need install and commissioning,Just press some screen soft botton then can start to work.When the SOC get
80% around, then it will be stop automatically.And the Tesla adapter is an optional accessary then by use this device can let your tesla EV get
high speed charging from the CHAdeMO charger.Our fast charger is very suitable for comercial and private family applications: firms,dealer
workshops,car-sharing bases or car rental company, e-taxi company,

model CHR-7
input voltage 110/220VAC ±15%  VAC,1ΦL+N+PE
input frequency 50/60Hz±10%
input power factor ≥0.95
input THD current ≤5%
support battery   LiFePO4,li-ion,Lead acid etc
output voltage 50-500VDC
output power 7kW
output current 0-26A
output voltage accuracy ±0.1%
output current accuracy ±0.1%
output ground protection  support
HMI and command unit 3.2′ LCD touch display
emergency stop  support
overall efficiency 93%
support protocol    GB,CHAdeMO,CCs,Tesla etc
parallel operation  support parallel operation
insulation test Input&Output to Ground 1500V,Control Circuit to Ground 500V
protection degree IP23 indoor / IP55 outdoor
overall weight 16kg
Dimension 300X300X260mm
