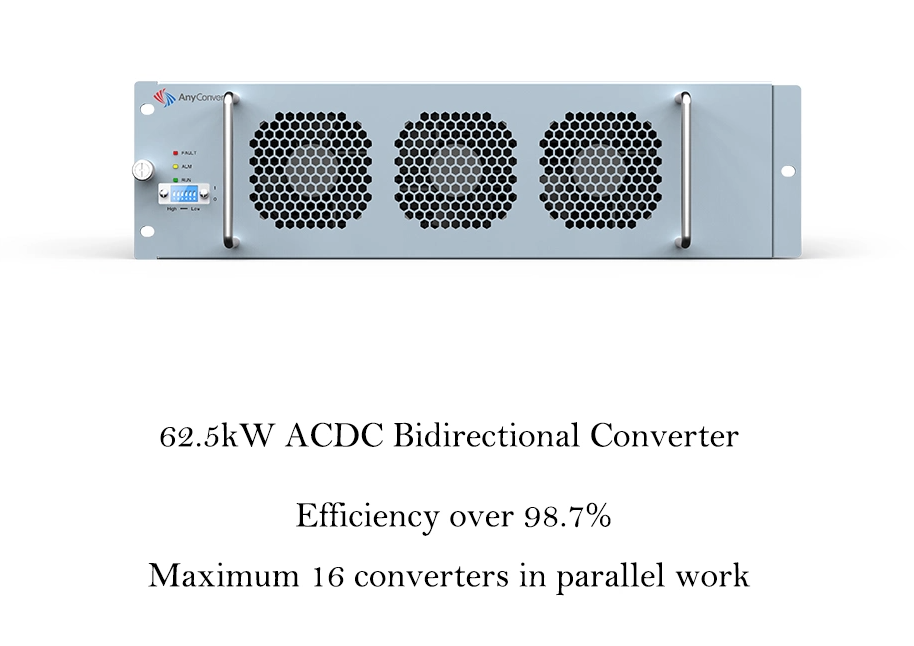

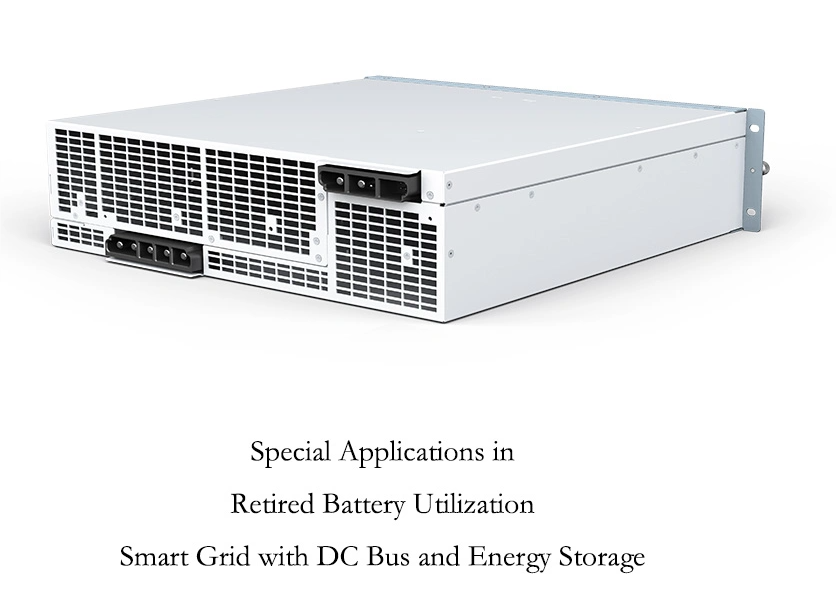

62.5kw BEG1K0110G Power Module Bidirectional Acdc Converter for Grid and Battery Energy Storage PCS Module

Short Description:

BEG1K0110G is especially applicated in connecting battery to AC grid. The power module enables a maximum DC output power of 62.5kW and output voltage from 650Vdc to 1000Vdc with AC2DC mode and rated power 62.5kW and rated current 95A with DC2AC mode. The ACDC converter features excellent performance in energy storage applications, high power density and high reliability, high efficiency and wide expansion capacity.

DC-side voltage and current:650 Vdc~1000 Vdc,0~110A
AC-side voltage and current:260 Vac ~437 Vac, 95A
Rated power:62.5kW
Certification:CE/ VDE4105/ G99
Dimensions and weight:110mm (H)x385mm (W) x395mm (D), ≤22 kg

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Product Parameters

AC to DC Mode	AC Input	3L+PE, 0~110A, 260Vac~437Vac, power factor ≥0.99
	DC Output	max 62.5kW, 650Vdc~1000Vdc, 0~110A, efficiency ≥98.7%
DC to AC Mode	DC Input	650Vdc~1000Vdc, 50kW~62.5kW, max 110A
	AC Output	260Vac~437ac, 50kW~62.5kW, max 95A, efficiency ≥98.7%
Mode Converting Time: 10ms
Dimension(HWDmm)/Weight: 110mm385mm395mm/≤22kg
