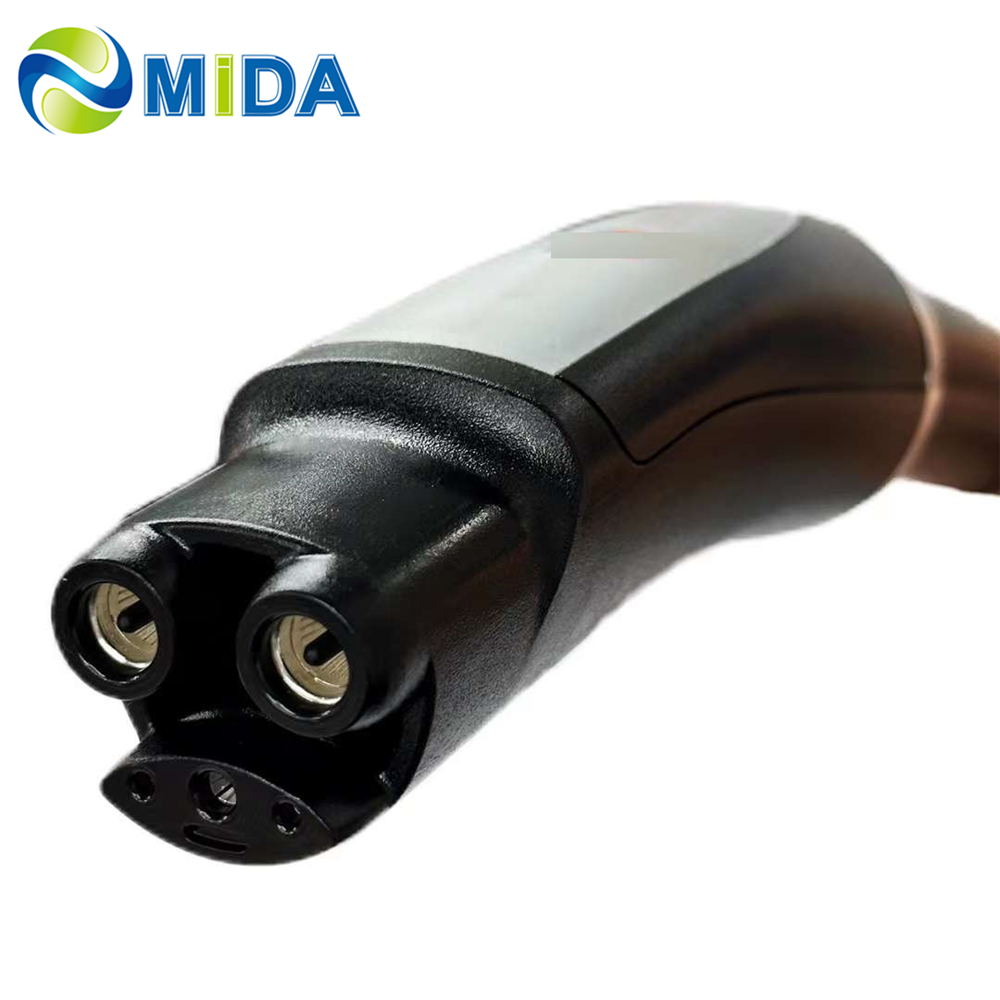

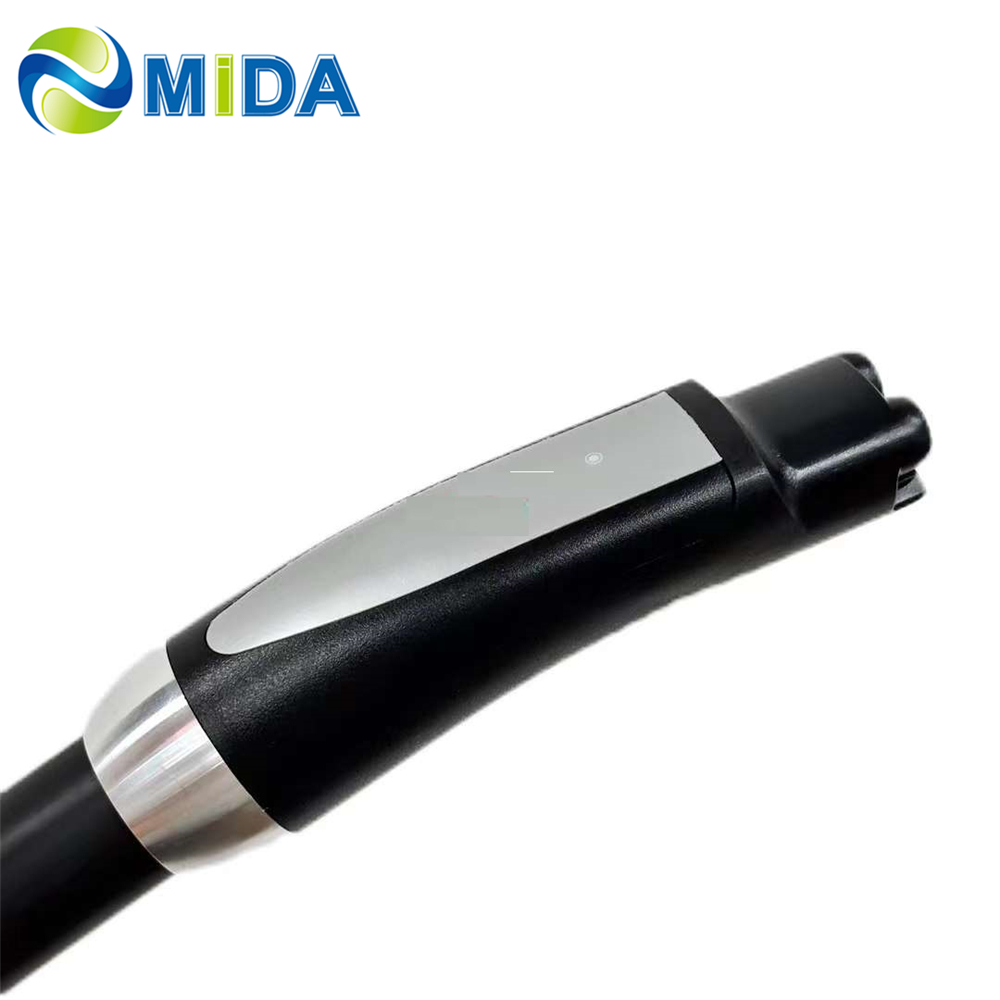

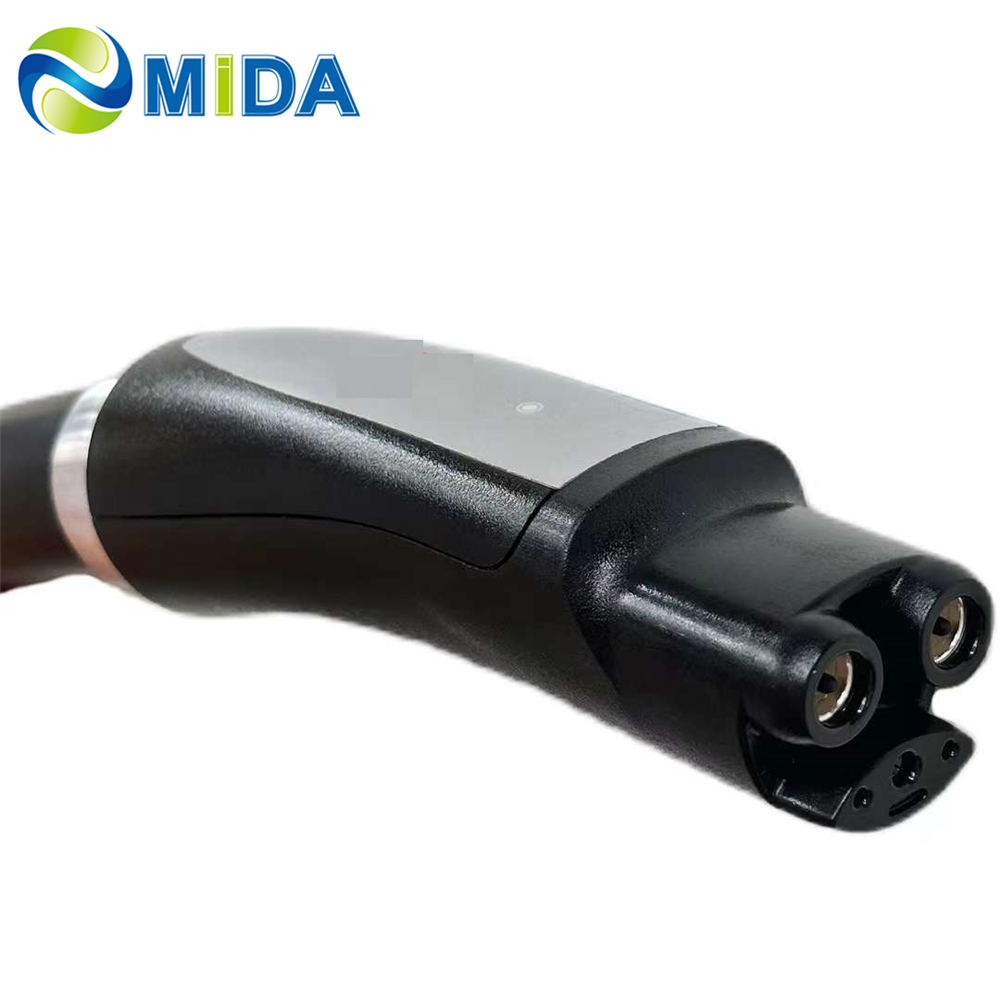

600A Tesla NACS Charger Cable Liquid-cooled Charging cable for DC Fast Charger NACS Charging

Short Description:

Model: MIDA-NACS-EV600LP

1. Rated Current：600A
2. OperationVoltage：DC 1000V
3. Insulation Resistance：＞1000MΩ（DC500V）
4. DC Max Charging Power: 600KW
5. Withstand Voltage：3200V

Tesla NACS EV Charger Connector
600A NACS Cable for Fast Charger Station
600A Fast Charger NACS Connector
IEC 62196-3 UL2251 NACS TESLA DC Charging Plug
600A NACS Connector for Quick Charging Point

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

ures	1. Meet 62196-3 IEC 2011 SHEET 3-Im standard
	2. Concise appearance, support back installation
	3. Back Protection class IP55
	4.Max charging power:600kW
	5. AC Max charging power:600kW
Mechanical Properties	1. Mechanical life : no-load plug in/pull out＞10000 times
	2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure
Electrical Performance	1. DC input 250A , 300A, 350A, 600A 1000V DC MAX
	2. AC input: 16A 32A 40A 48A,80A 240VAC MAX
	3. Insulation resistance：＞2000MΩ（DC1000V）
	4. Terminal temperature rise：＜50K
	5. Withstand Voltage：3200V
	6. Contact resistance: 0.5mΩ Max
Applied Materials	1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
	2. Pin：Copper alloy,silver +thermoplastic on the top
Environmental Performance	1. Operating temperature: -30°C~+50°C
Model selection and the standard wiring
Model		Rated Current	Cable Specigication	Cable Color
MIDA-NACS-EV600LP		600A	2X2AWG(cooling)+1X13AWG+(2X18AWG)P2+4X18AWG	Black
