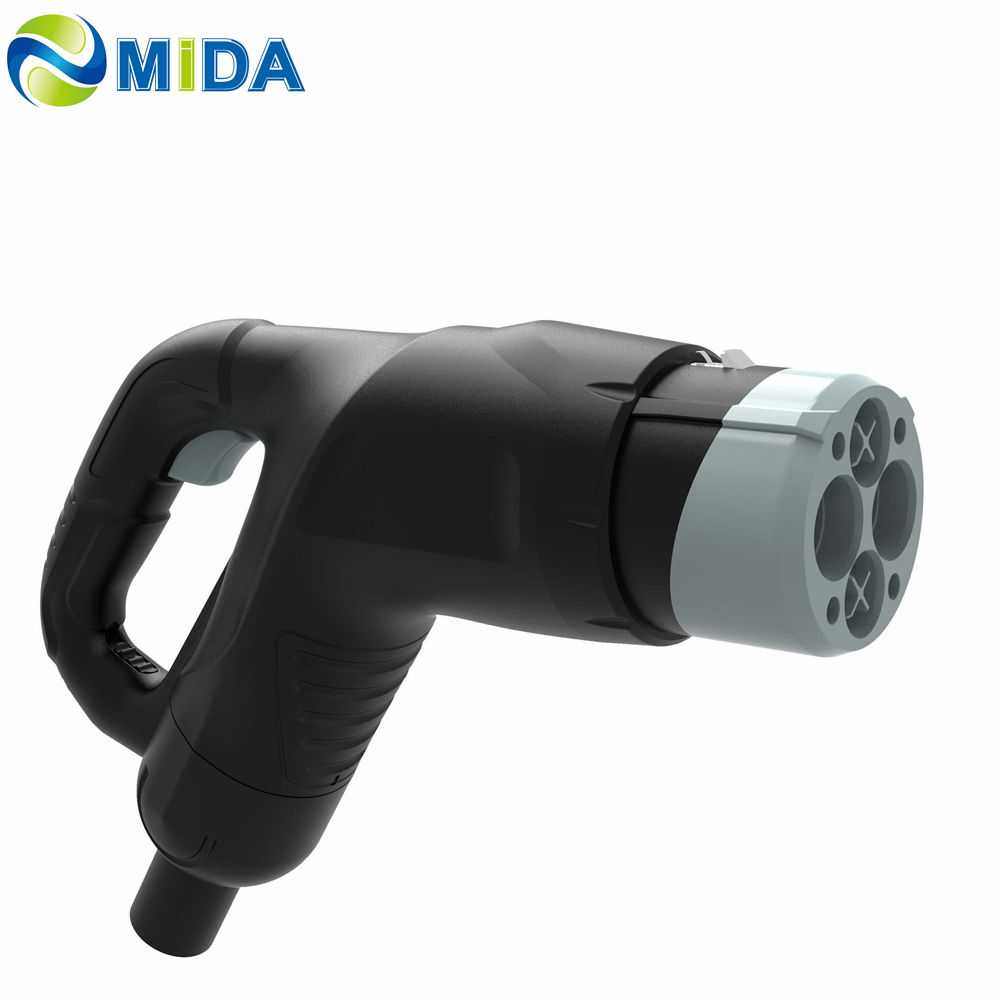

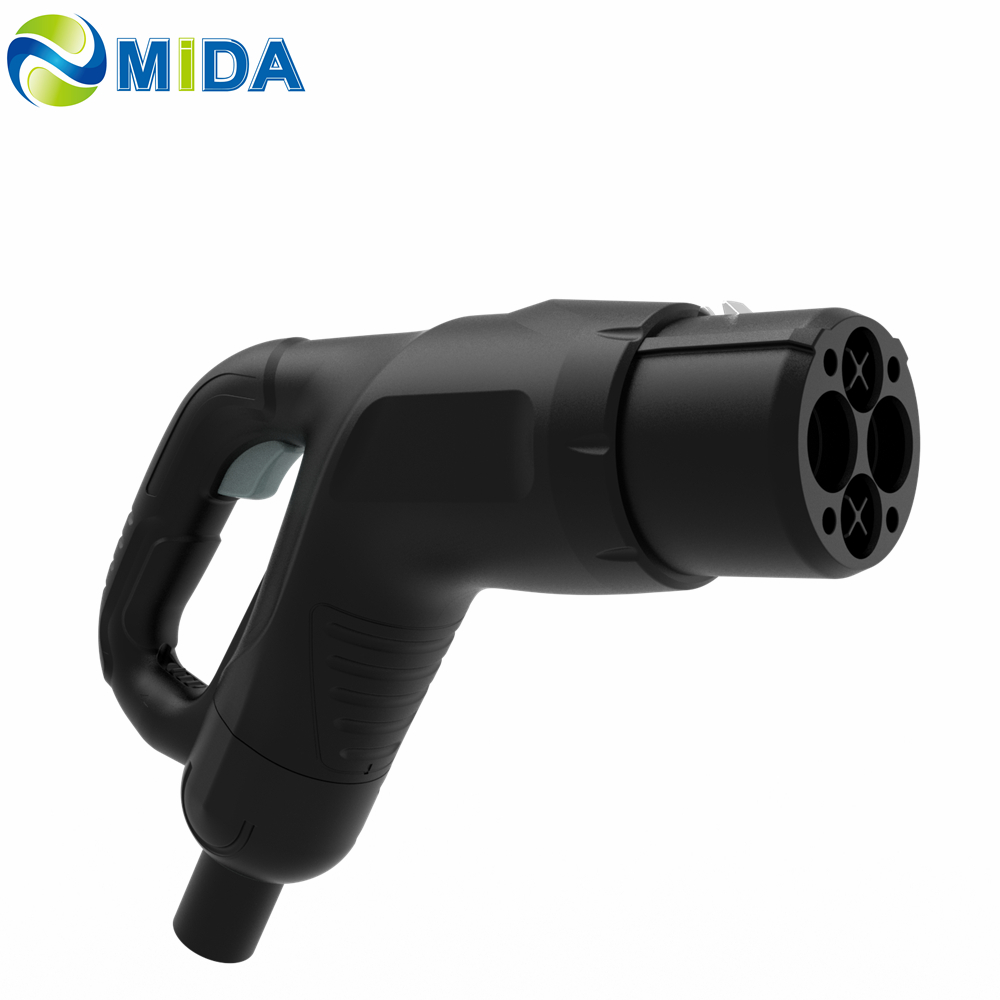

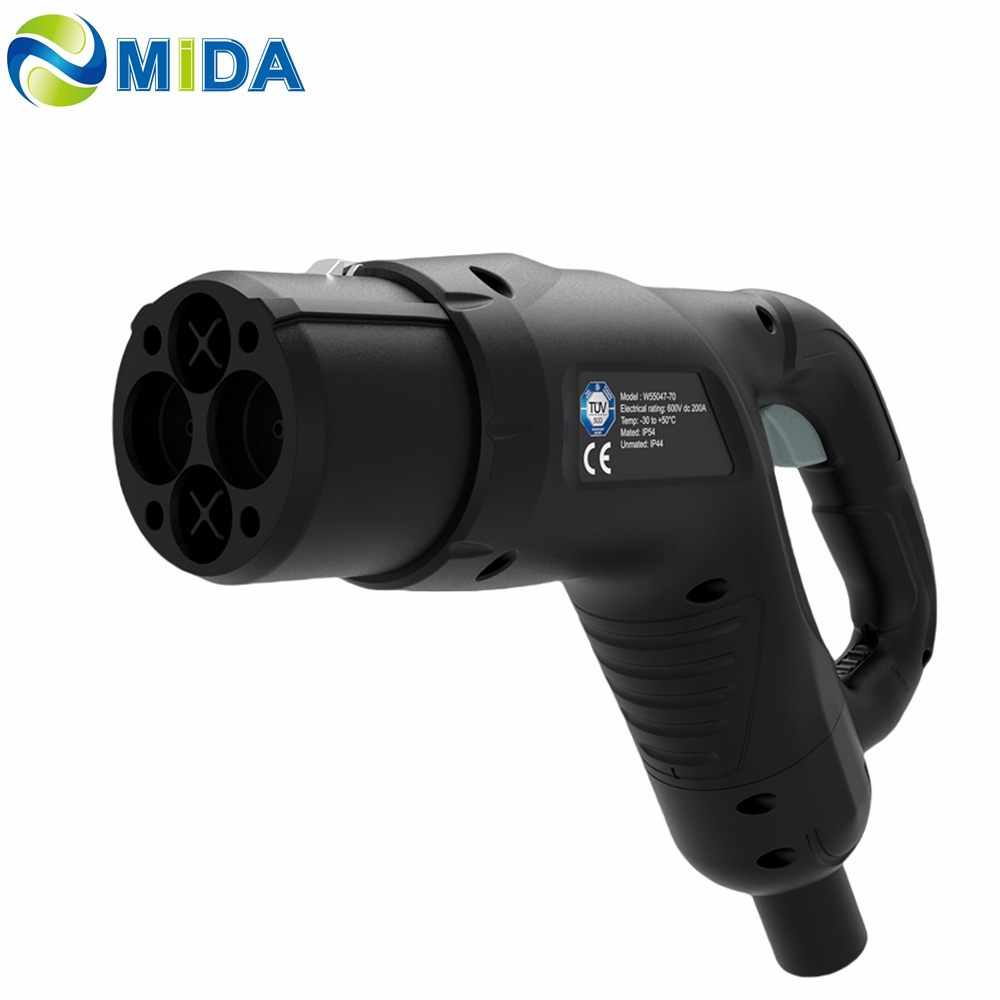

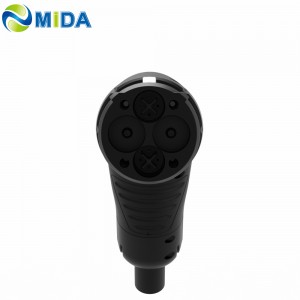

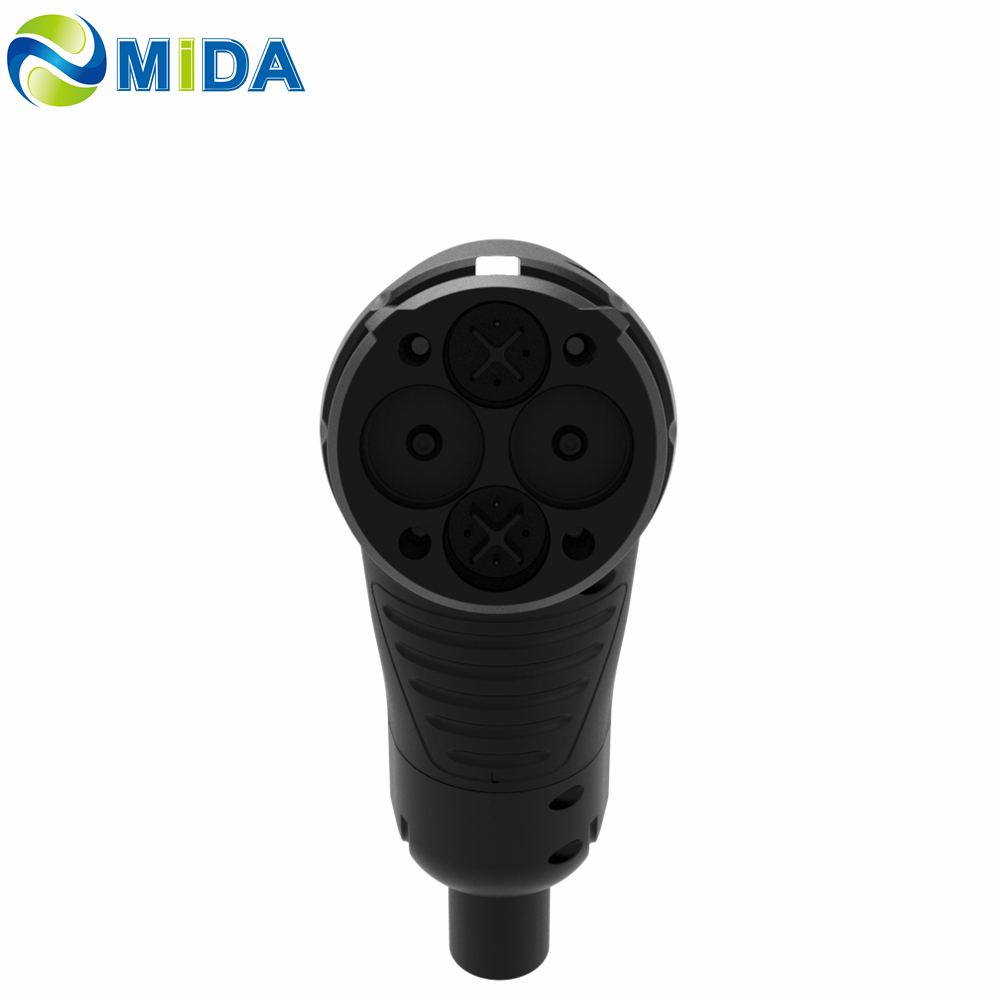

250A 1000V CHAdeMo DC Charging connector CHAdeMo EV Charging plug

Short Description:

Rated Current:250A
Rated voltage:1000V
Therminal temperature rise:<50K
Protection Degree:IP55
Withstand voltage:2000V
Working temperature:-30°C ~+50°C
Contact impedance:0.5m Max
Certificate:CE Approved,


Product Detail

FAQ

Product Tags

Model CHAdeMO Plug
Rated current DC+/DC-:80A,125A,150A,200A,250A
PP/CP:2A
Wire Diameter  80A/16mm2125A/35mm2

150A/70mm2

200A/80mm2

Rated voltage DC+/DC-: 750V DC;
L1/L2/L3/N: 480V AC;
PP/CP: 30V DC
Withstand voltage 3000V AC / 1min. (DC + DC- PE)
Insulation resistance ≥ 100mΩ 750V DC (DC + / DC- / PE)
Electronic locks 12V / 24V optional
Mechanical life 10,000 times
Ambient temperature -40℃~50℃
Degree of Protection IP55(When not mated)
IP44(After mated)
Main material
Shell PA
Insulation part PA
Sealing part Silicone Rubber
Contact part Copper alloy
