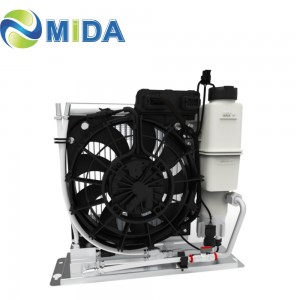

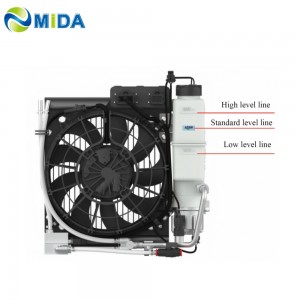

2.4KW Liquid Cooling System HPC Cold Source System for High power DC Fast charger

2.4KW Liquid Cooling System HPC Cold Source System for High power DC Fast charger Featured Image
Loading...
  • 2.4KW Liquid Cooling System HPC Cold Source System for High power DC Fast charger
  • 2.4KW Liquid Cooling System HPC Cold Source System for High power DC Fast charger
  • 2.4KW Liquid Cooling System HPC Cold Source System for High power DC Fast charger
  • 2.4KW Liquid Cooling System HPC Cold Source System for High power DC Fast charger

Short Description:

Item:HPC Liquid Cooling System
Rated voltage:12V/DC
Rated Current:500-800A
Protection Degree:IP68
Size:435×155×410mm
Working temperature:-30°C ~+50°C
Weight:7KG
Certificate:CE Certificate


Download as PDF

Product Detail

FAQ

Product Tags

  • Radiating power : 3000W@4L/min，700m3/h
  • Charging Current : 500-800A
  • Rated Voltage : 12V/DC
  • Operating Temperature : -30℃～50℃

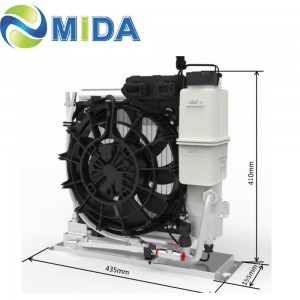

  • Dimensions : 435×155×410mm
  • Cooling Medium: dimethyl silicone oil
  • Noise:≤60dB(A）
  • Maximum Pressure: 0.7MPa
  • Flow medium: 4L/min@450Kpa
  • Communication Mode: MODBUS Based 485
  • Liquid cooling modules,HPC Liquid Cooling System EV-HPC-PCU-01 Cooling Unit ,Liquid Cooling Machine,CCS 2 Plug Liquid-cooled Charging Unit
  • Model EV-HPC-PCU-01 Cooling Unit Liquid Cooling System
    Radiating power 3000W@4L/min，700m3/h
    Rated Current 500A~800A
    Rated Voltage 12V/DC
    Noise ≤60dB(A）
    Maximum Pressure 0.7MPa
    Flow medium 4L/min@450Kpa
    Communication Mode MODBUS Based 485
    Ambient temperature -30℃~50℃
    Degree of Protection IP68
    Main material
    Lifttime 25000h
    Volume of oil can 1.5L
    Cooling Medium: Dimethyl silicone oil
    Dimensions : 435×155×410mm
