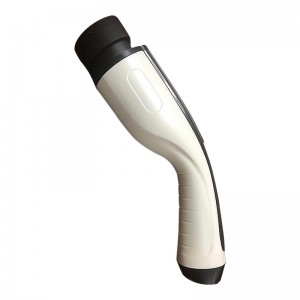

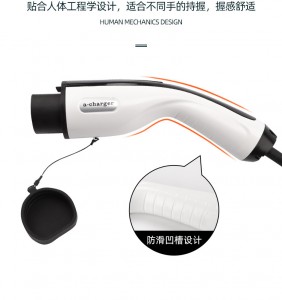

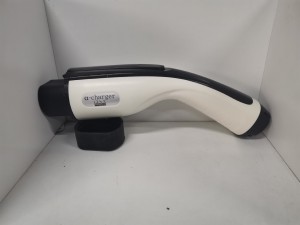

16A single phase AC 220V GB/T Chinese Standard ev charging gun
| Rated Current | 16Amp Single Phase | |||||
| Operation Voltage | AC 220V | |||||
| Insulation Resistance | ＞1000MΩ（DC 500V） | |||||
| Withstand Voltage | 2000V | |||||
| Pin Material | Copper Alloy, Silver Plating | |||||
| Shell Material | Thermoplastic,Flame Retardant Grade UL94 V-0 | |||||
| Mechanical Life | No-Load Plug In / Pull Out ＞10000 Times | |||||
| Contact Resistance | 0.5mΩ Max | |||||
| Terminal Rise | ＜50K | |||||
| Operating Temperature | -30°C~+50°C | |||||
| Impact Insertion Force | >300N | |||||
| Waterproof Degree | IP55 | |||||
| Cable Protection | Reliability of materials,antiflaming,pressure-resistant, abrasion resistance impact resistance and high oil |
|||||
| Certification | GB/T 20234.2-2015 | |||||
| Model | Rated Current | Phase | Cable Specification | Cable Color | Cable Length | |
| MIDA-EVF-16A-SP | 16Amp | 1 Phase | 3 X 2.5mm² + 2 X 0.5mm² | Black Orange Green |
(5Meter ,10Meter) The length of the cable can be customized |
|
| MIDA-EVF-32A-SP | 32Amp | 3 X 6mm²+ 2 X 0.5mm² | ||||
| MIDA-EVF-16A-TP | 16Amp | 3 Phase | 5 X 2.5mm² + 2 X 0.5mm² | |||
| MIDA-EVF-32A-TP | 32Amp | 5 X 6mm²+ 2 X 0.5mm² | ||||
